EMBOSSED CARRIER TAPE

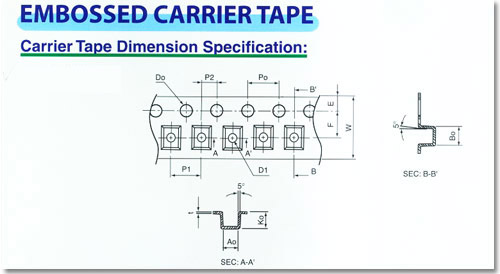

Carrier Tape Dimension Specification:
項目 |
W |
P1 |
E |
F |
D0 |
D1 |
P0 |
10P0 |
P2 |
K0 |
A0 |
B0 |
|
規格
|
8.0 |
4.0 |
1.75
|
3.5 |
1.50
|
1.0 |
4.0
|
40.0
|
2.0
|
— |
— |
— |
12.0 |
8.0 |
5.5 |
0.5 |
— |
— |
— |
||||||
16.0 |
12.0 |
7.5 |
1.5
|
— |
— |
— |
||||||
24.0 |
16.0 |
11.5 |
— |
— |
— |
|||||||
總計
|
±0.2
|
±0.1
|
±0.1
|
±0.05
|
+0.1
|
±0.05
|
±0.05
|
±0.2
|
±0.05
|
±0.1
|
±0.1 |
±0.1
|
-0.01 |

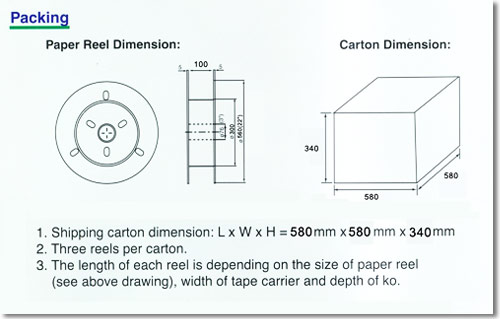

1. 出貨外箱尺寸，長×寬×高＝580×580×340 2. 每箱裝三捲軸。 3. 每捲軸纏繞的米數，依捲軸大小（如上圖）、帶寬、及Ko的深淺而定。
